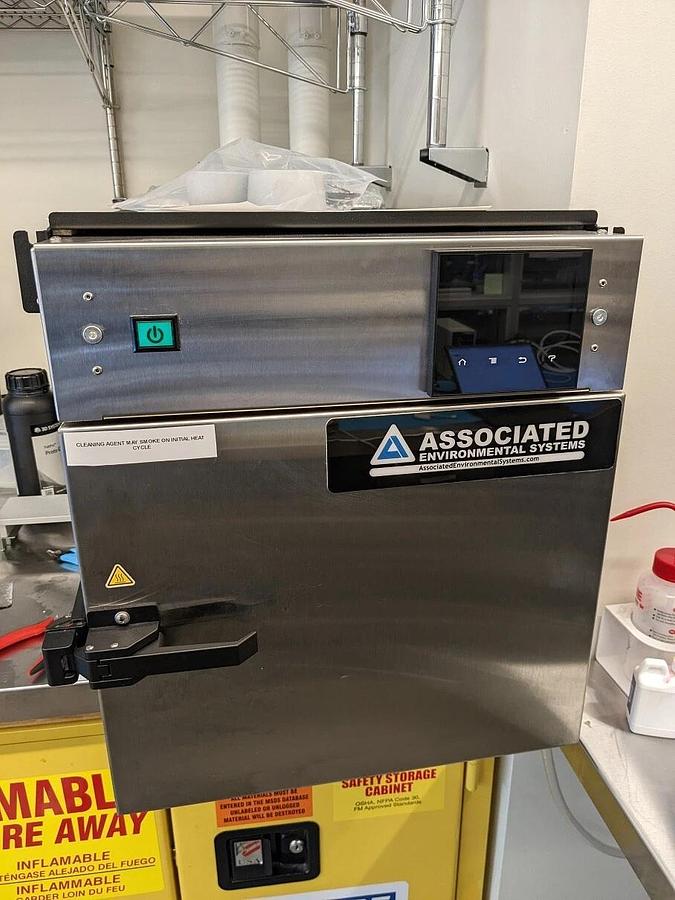

2020 Associated Environmental Systems- SD-501

The SD-501 Series is a unique benchtop environmental test chamber. The slim design, across the face, takes up less space than any other chamber, on the market today. It fits perfectly in a standard 19" rack. Specifically designed to hold smaller test units, it's perfect for running temperature tests on lithium-ion batteries, small electronic devices, and growing organ cells for biotechnology companies.
Featuring polished, heavy-gauge, stainless steel construction, inside and out, makes the SD-501 Series Test Chambers ideal for dust-free, sterilized environments. Between the internal and external layers, is highly-efficient, low K factor, thermal insulation This test chamber is built to withstand constant use and efficiency.
The slim design of this test chamber allows for highly controlled test samples or small batch testing with nine channels spread over three shelves.
Air circulation is crucial for environmental testing. The SD-501 Test Chamber has a proprietary factory-adjustable baffle and fan design combination to optimize circulation conditions and temperature within the test workspace.
Featuring industry-leading heating systems, SD-501 Series Test Chambers are equipped with multiple low-watt density, ceramic core, nichrome heaters for accurate temperatures within ±0.5°C, as measured at the sensor. The arrangement of the heater gives you ultimate temperature precision. If your testing requires conditions drier than the surrounding ambient air, add an optional dry air purge or dry nitrogen purge system.
This benchtop test chamber is ideal for longer steady-state testing. Its unique slim style allows the chamber to be stacked one on top of the other in a server rack system allowing three independent tests to operate in the footprint of one test chamber.
Interior: 13.0W x 13.6D x 9.875H (in)
330.2W x 345.4D x 250.8H (mm)
Exterior: 19W x 47D x 19H (in)
482.6W x 1193.8D x 482.6H (mm)
Volume: 1.01 cubic ft
28.59 liters
Temperature: -37°C to 180°C (-34.6°F to 356°F)
Rise Rate*: 2.5°C/min
Pull Down Rate*: 2.8°C/min

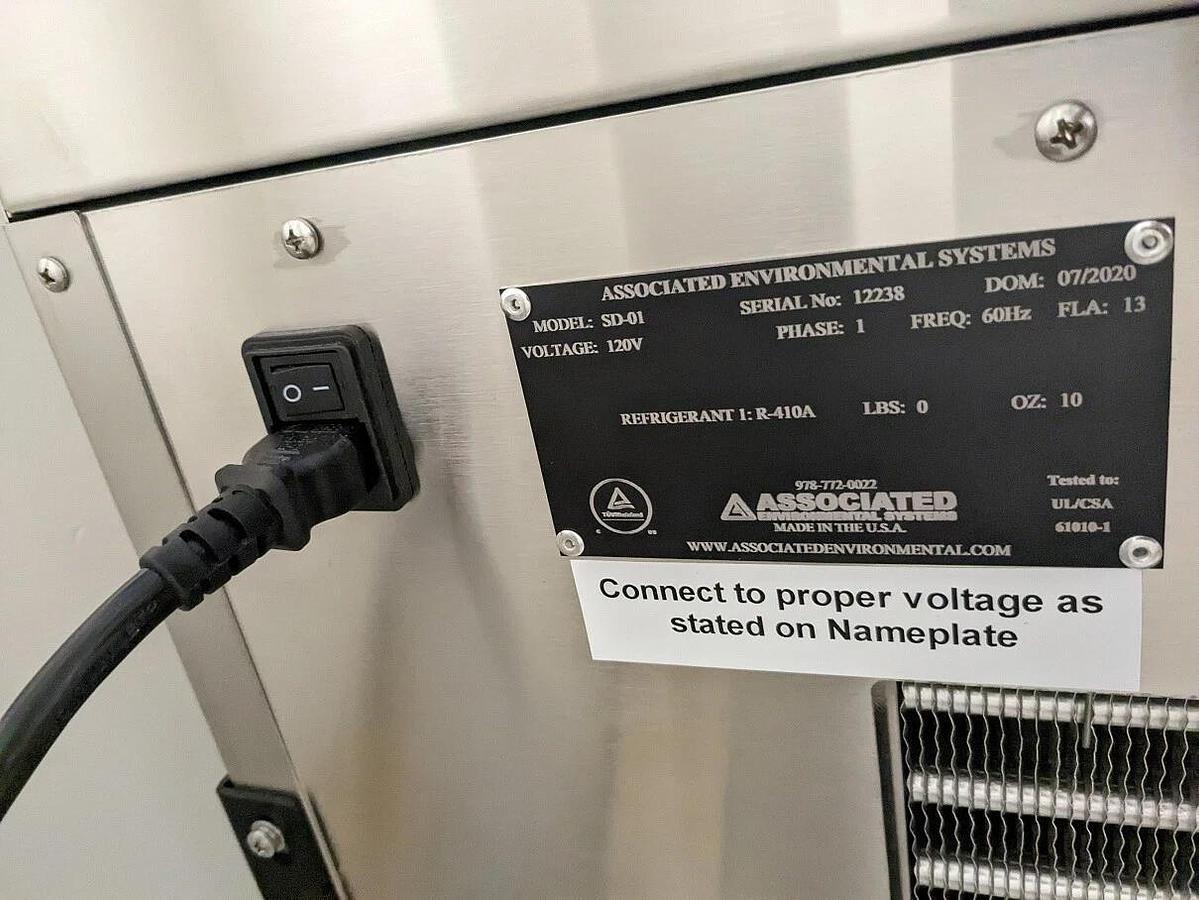

Electrical Supply: 120 VAC, 1 PH, 60 HZ
Full Load Amps: 13 A
Power Requirement: NEMA L5-15
Refrigeration System: Single stage
Mobility: Will fit through 32 in doorway
Approximate Product Weight: 155.0 lbs (70 kg) without added options
Approximate Shipping Weight: 235.0 lbs (107 kg) without added options
