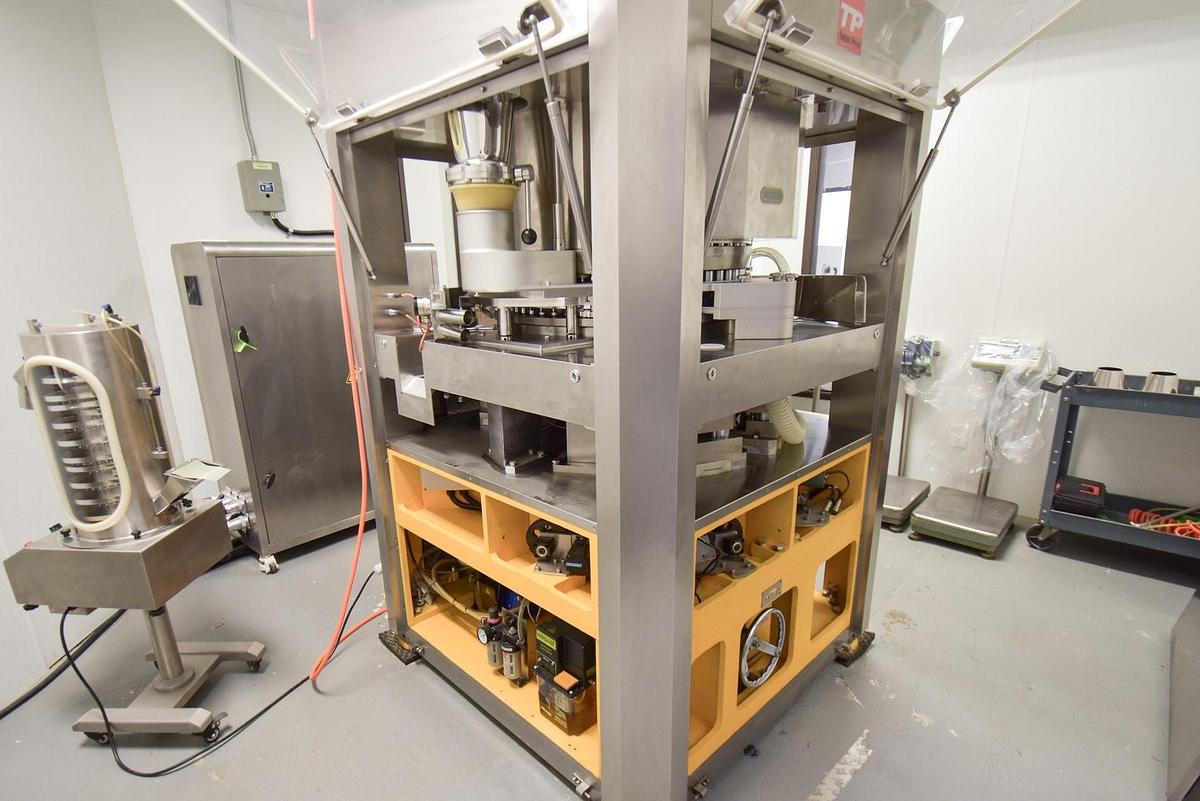

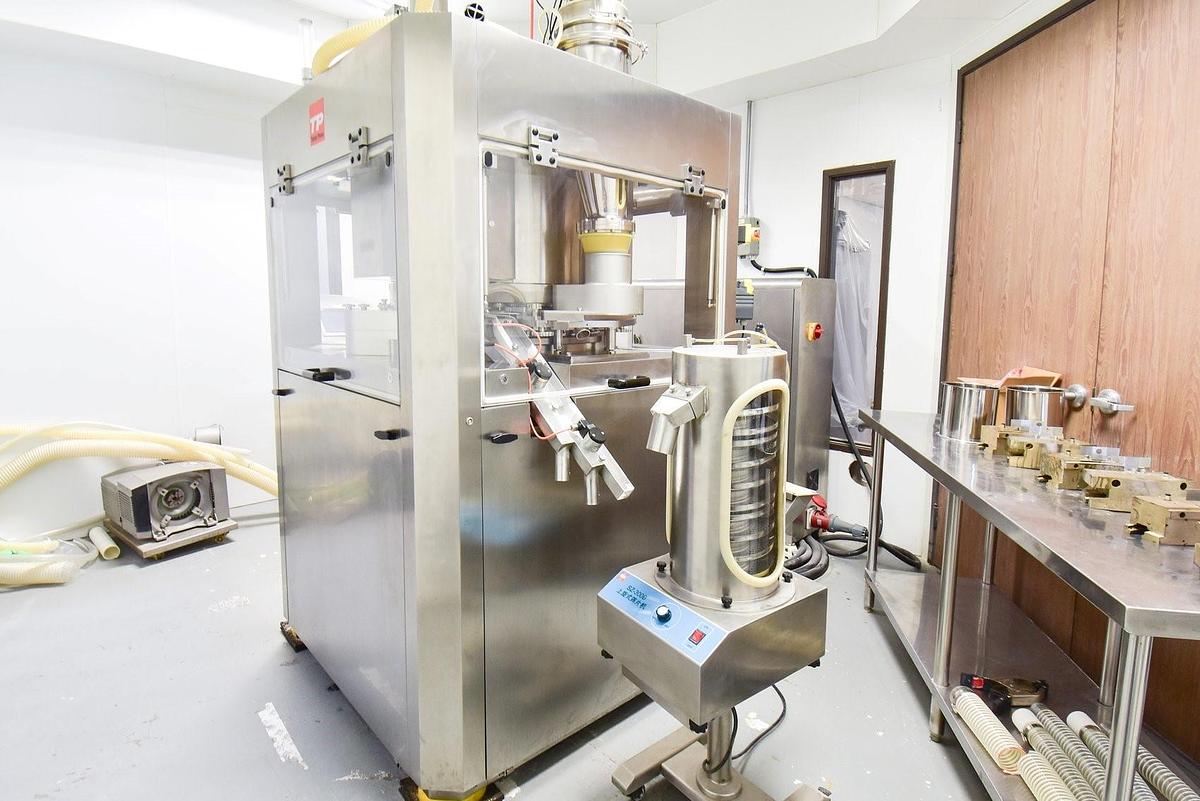

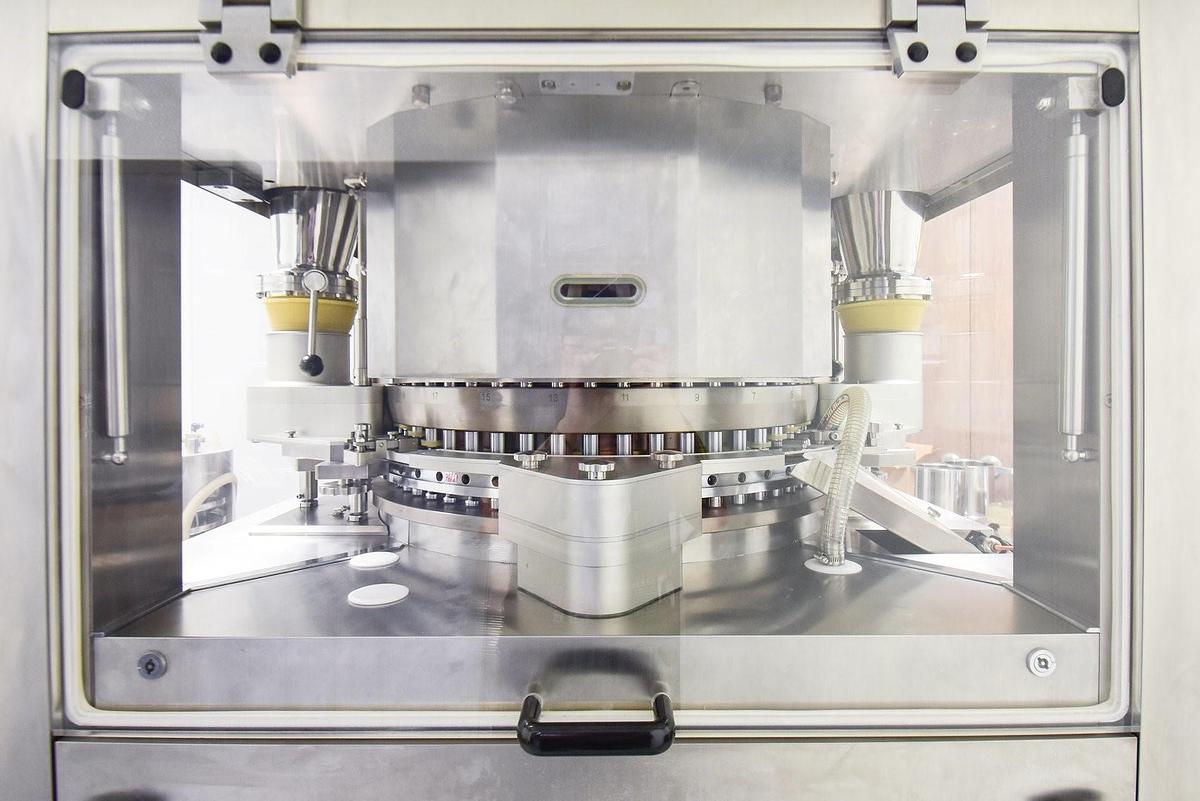

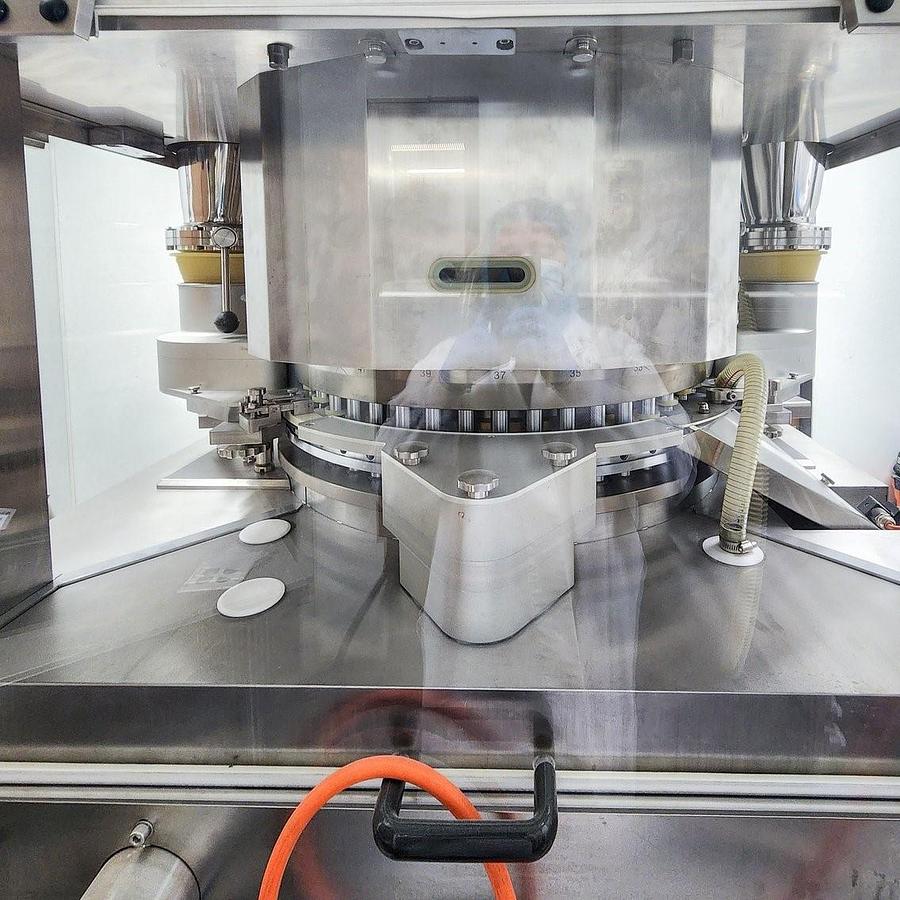

GZPK720-51 Station Tablet Press D- Tooled

Applications

High-speed, D-tooled rotary tablet press machine used in the pharmaceutical, food, and chemical industries.

It features 51 punch stations and a double-press system for continuous, automatic production.

Specifications

• Quantity of Punch & Die (sets)    51
• Tooling Type       D (EU 1"/TSM 1")
• Max. Pre-pressure           100 kN
• Max. Main Pressure        100 kN
• Max. Tablet Diameter      25 mm
• Max. Filling Depth            20 mm
• Max. Tablet Thickness     8 mm (some sources list 8.5 mm)
• Production Capacity        47,000 - 470,000 pcs/h (some sources up to 612,000 pcs/h)
• Punch Shank Diameter   25.35 mm
• Middle Die Diameter       38.1 mm
• Punch Length     133.6 mm
• Pitch Circle Diameter       720 mm
• Motor Power      11 kW
• Weight  ~5500 kg
• Overall Size         1300 x 1300 x 2000 mm

Key Features:

• Double-press system: Includes both pre-compression and main compression stages, with a pressure of up to 100 kN each.

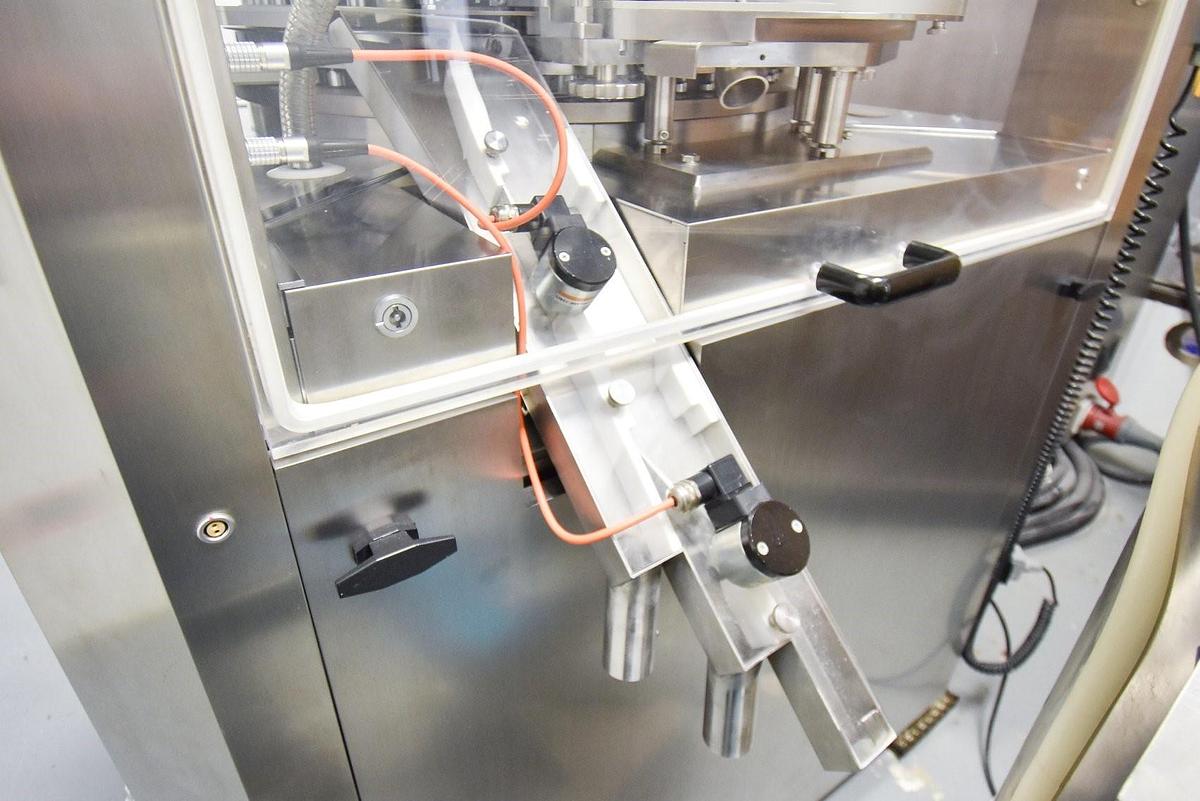

• Automation: Equipped with PLC control, touch screen operation, automatic tablet weight adjustment, and defective tablet rejection systems.
• Safety & Compliance: The machine is fully-enclosed in stainless steel, meets GMP standards, and includes an overloading protection system.

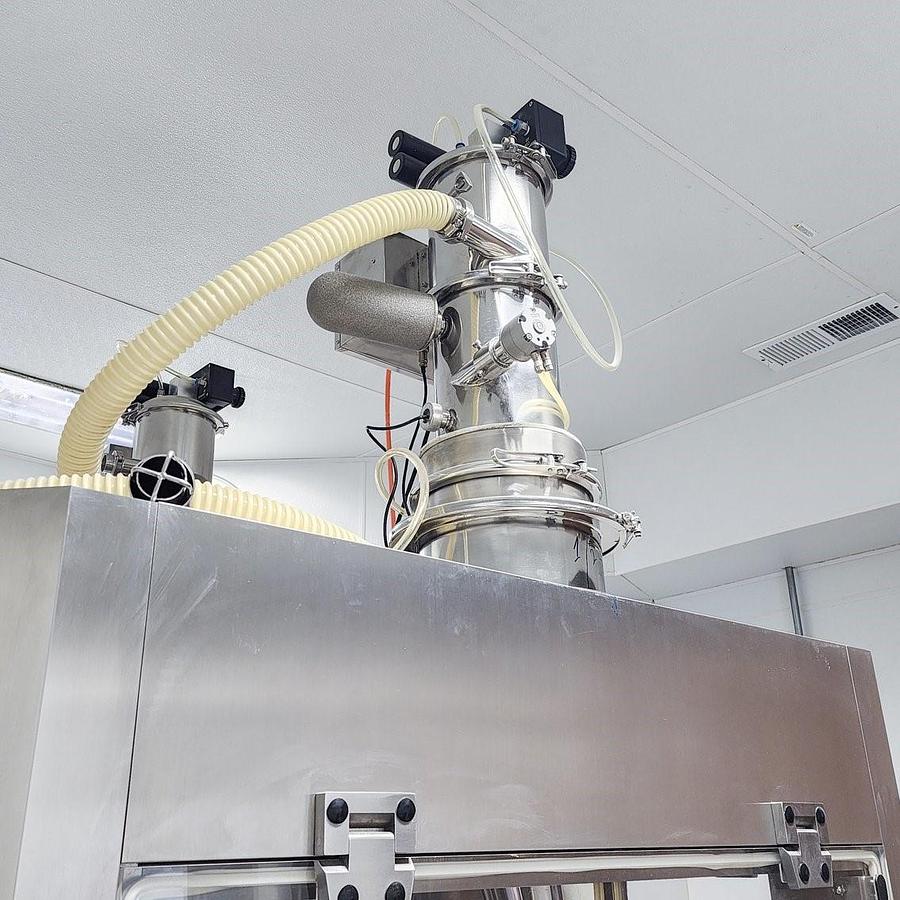

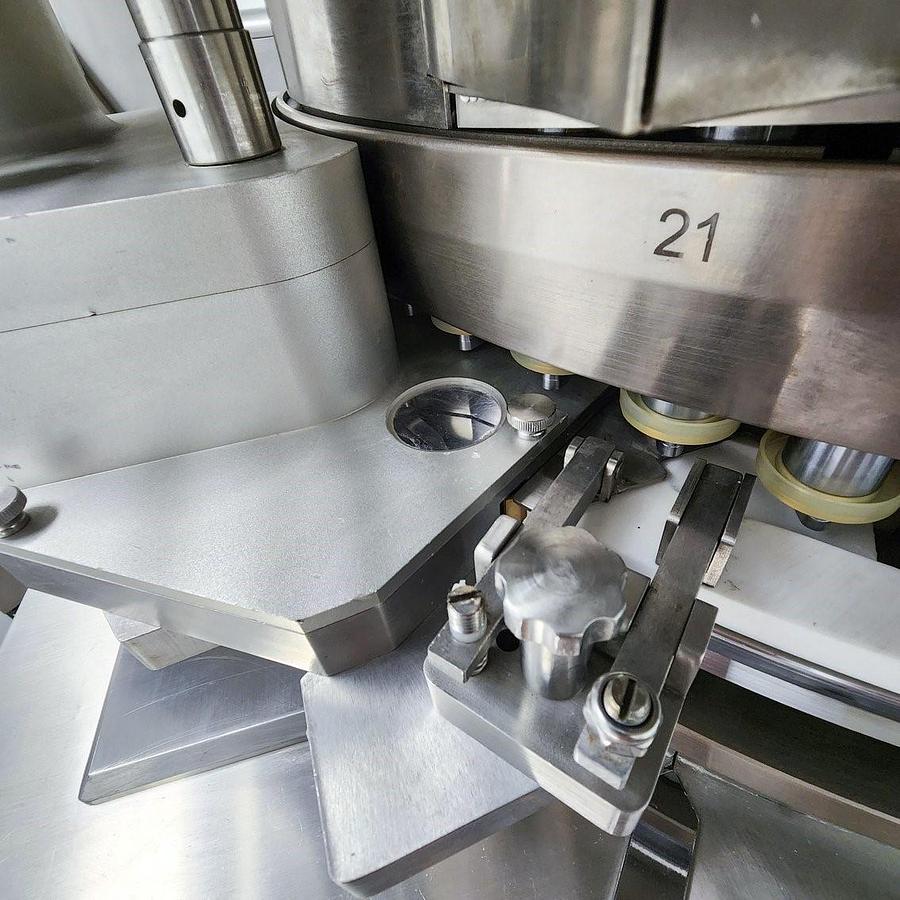

• Force Feeding: Features a forced-feeding device to ensure accurate powder dosing and high applicability to powders with varying flowability.
