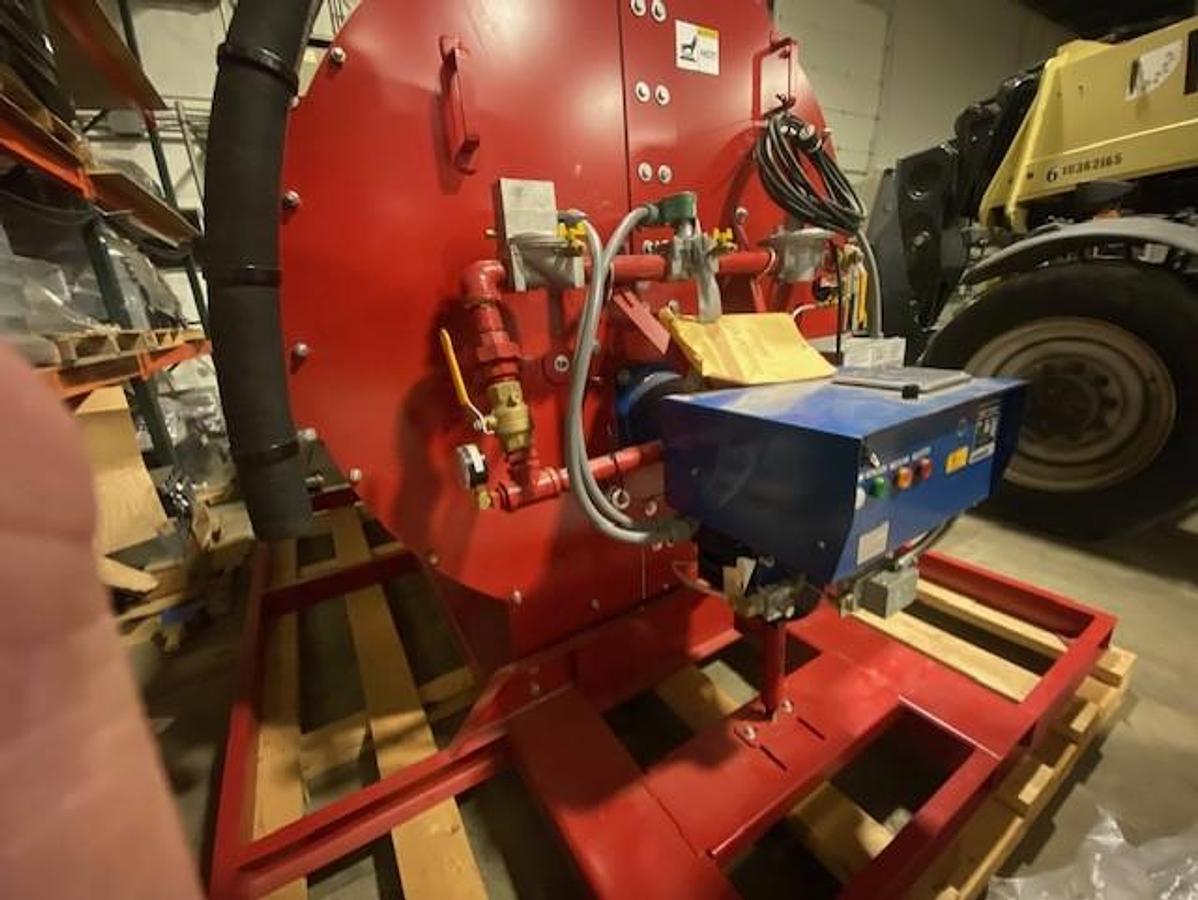

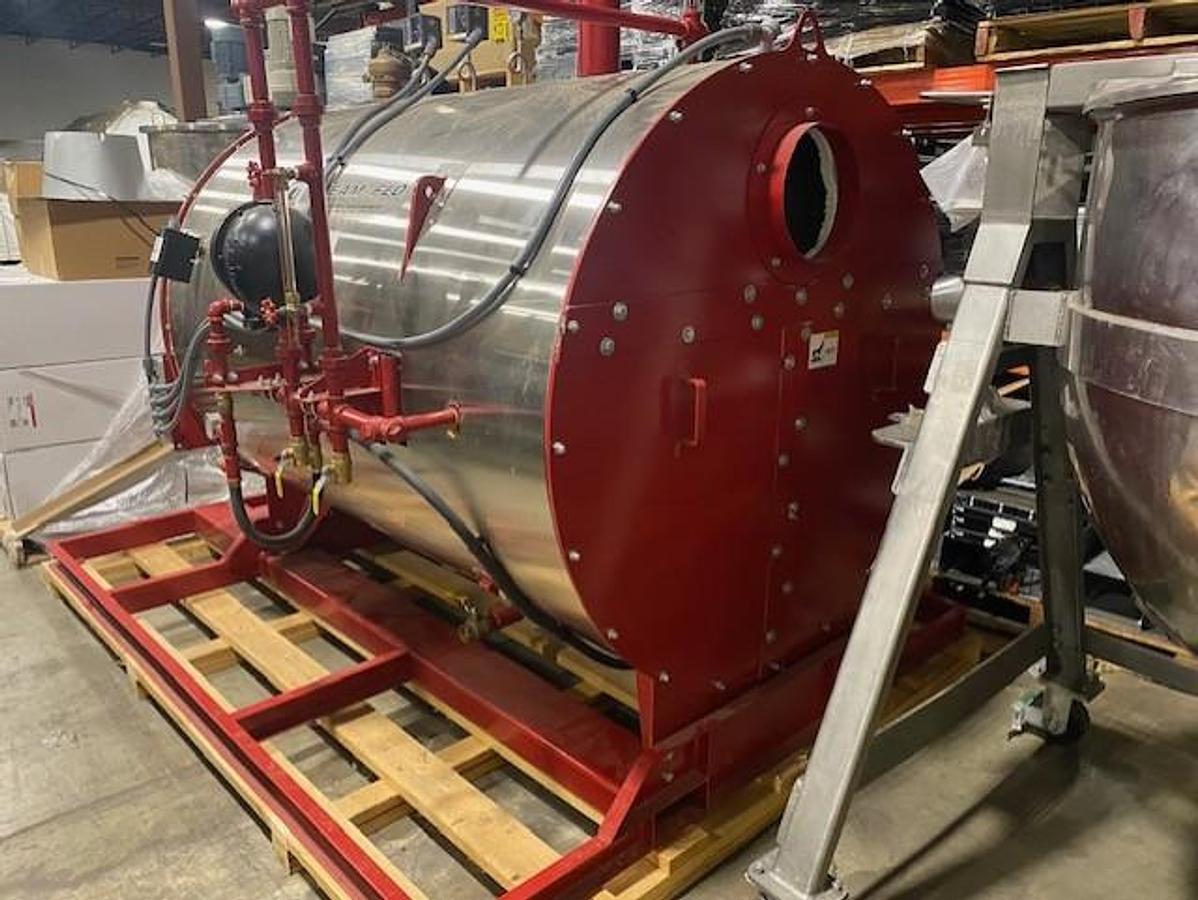

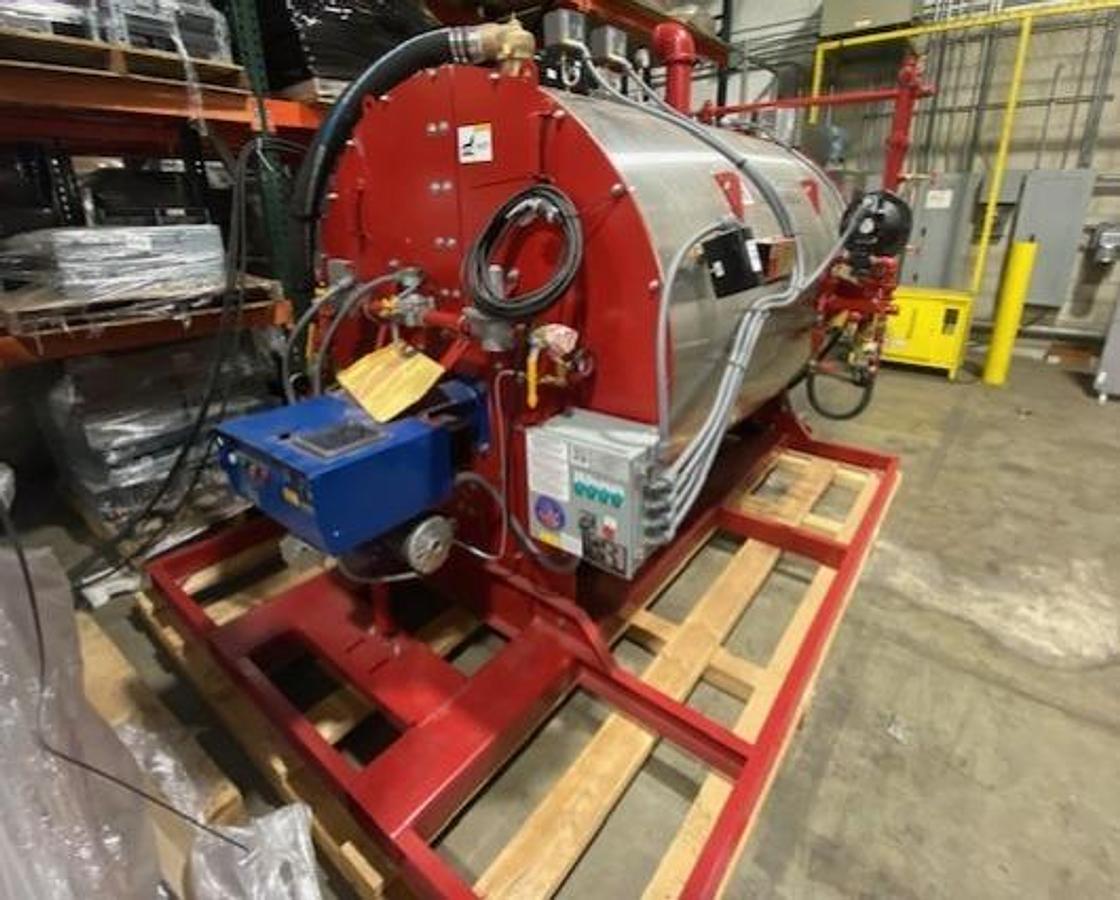

SF-50 Steam-Flo Steam Generator

The Steam-Flo® line provides low-pressure steam for a variety of commercial applications. The Steam-Flo® vessel

is constructed from boiler plate steel, and will give years of service with minimal

maintenance. Low water sensor switch and automatic water feeder maintain water level

and provide low water shutdown.

SF-50

• 50 Boiler HP

• 1,725 Lbs/Hr Steam Output

• 115V/1/60 Hertz, 10 Amps

• Oil, Natural Gas, or LP burner

• Registered with National Board of Boiler and Pressure Vessel Inspectors.

• Third party approved to UL508A and CAN/CSA-C22.2 No. 14-10.

• Canadian Registration Number.

• Meets requirements of CSD-1 of the ASME Code.

• Built to Section IV of the ASME Code.

• 0-15 PSIG and 212°F - 250°F Steam
