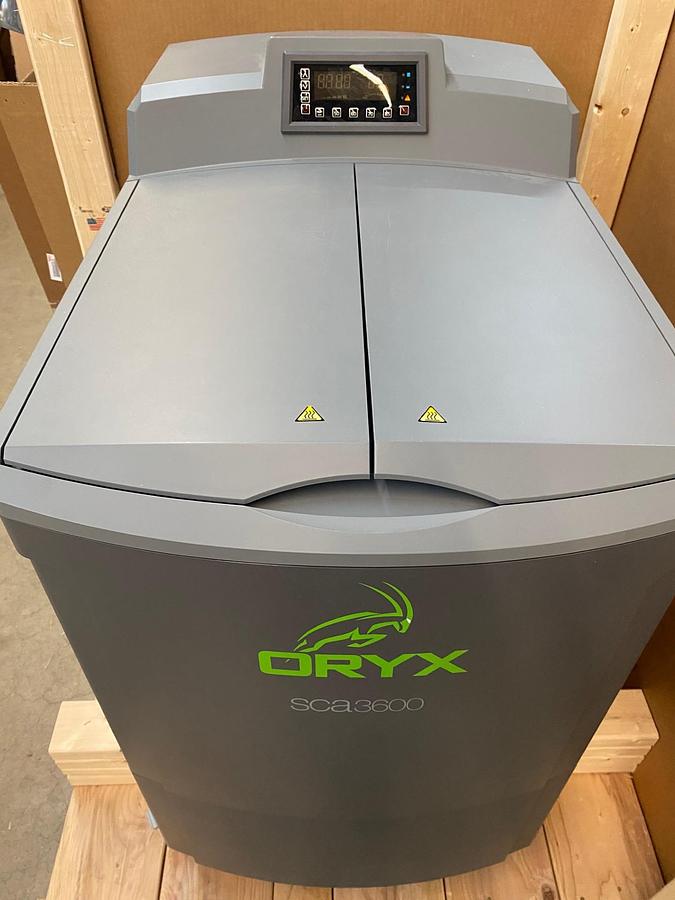

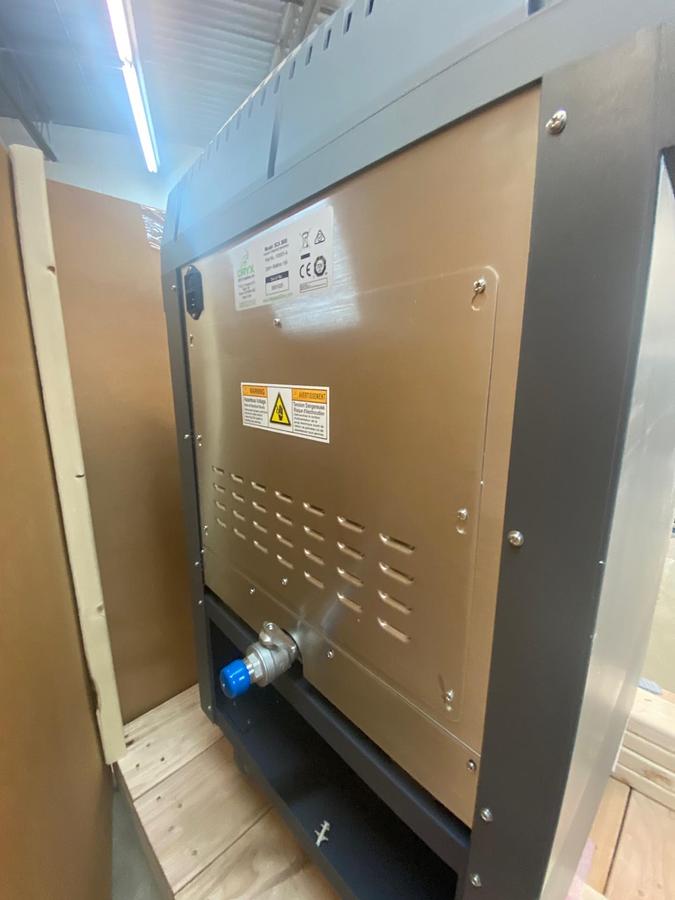

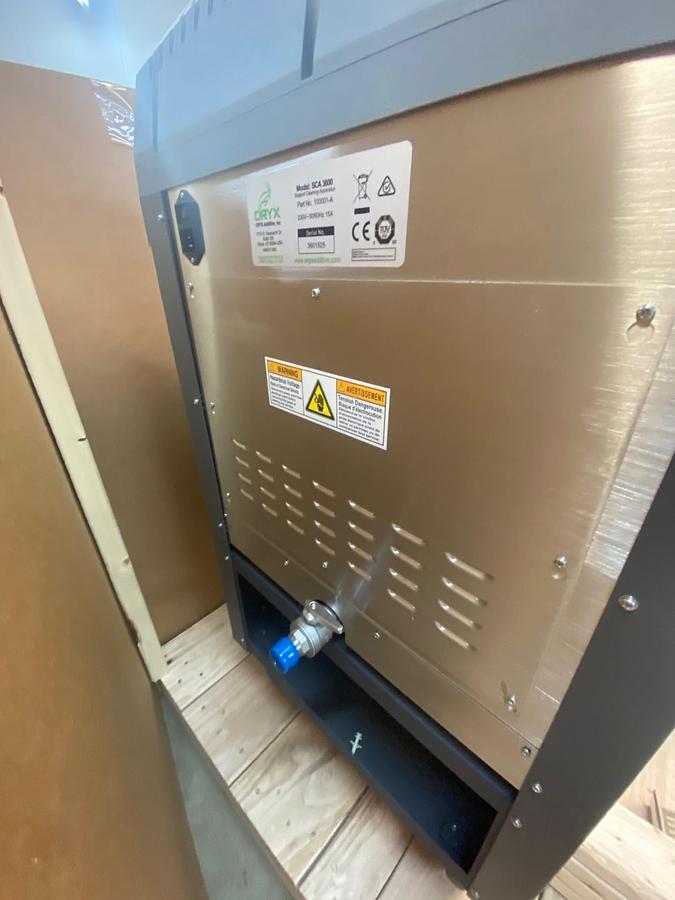

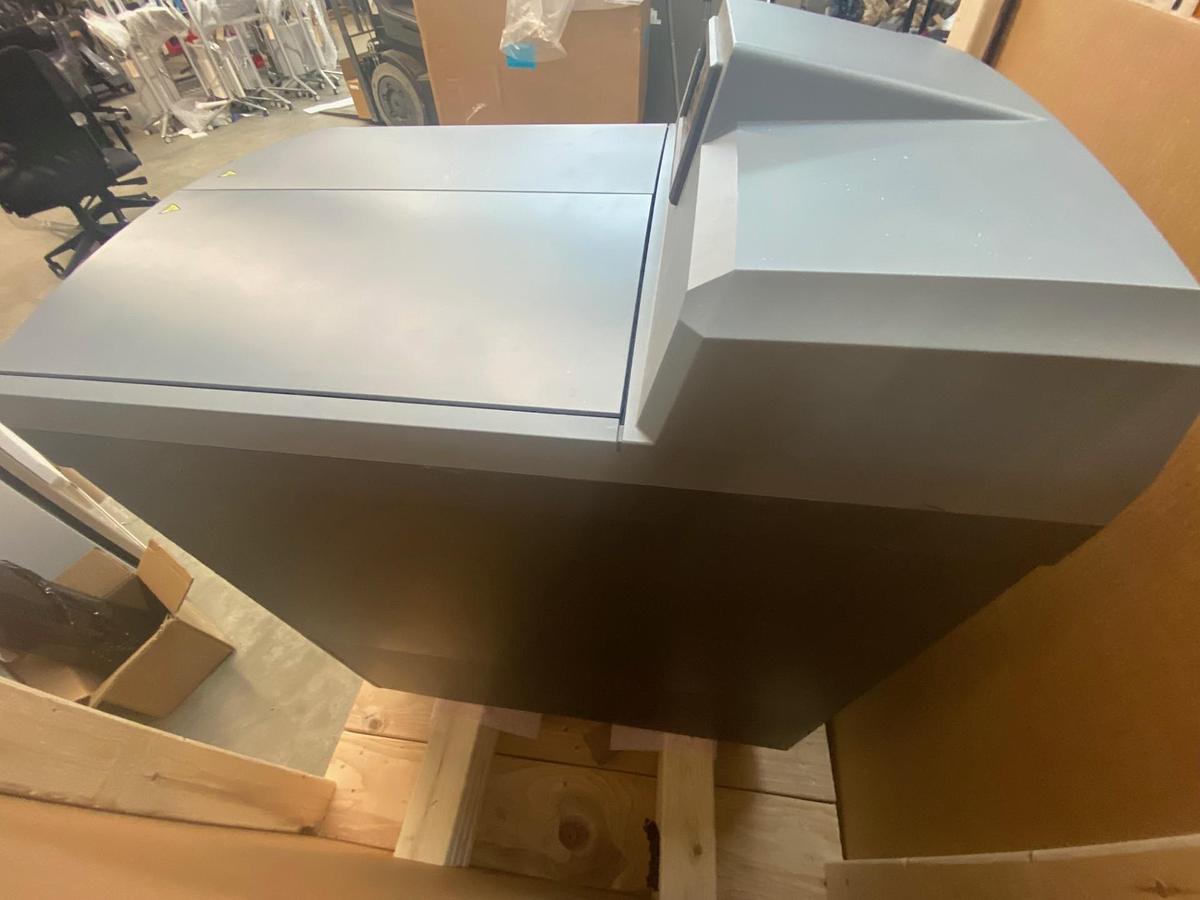

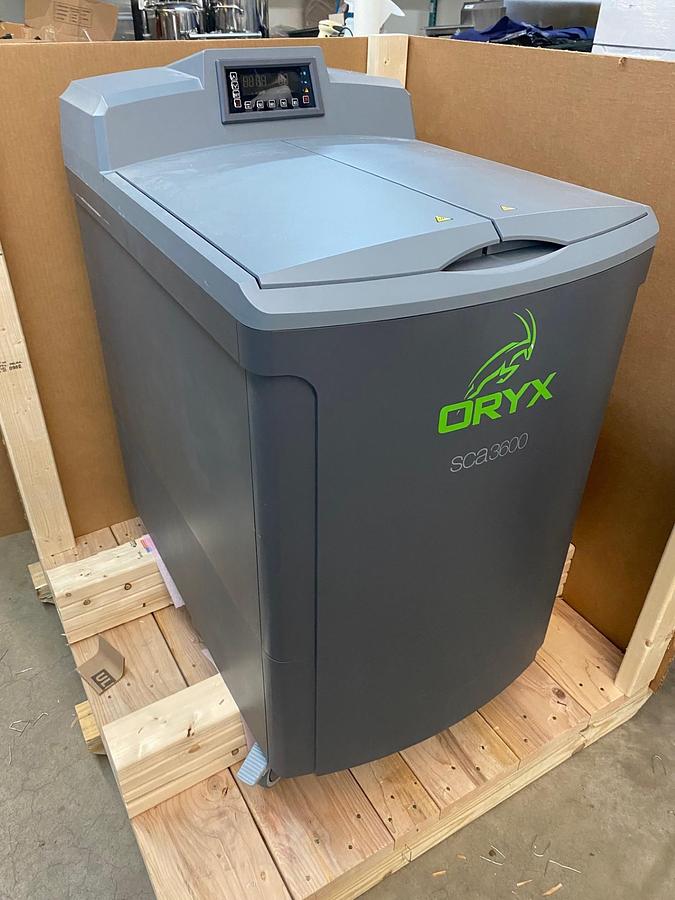

Oryx SCA 3600 Cleaning Tank

Large industrial & high throughput solution for removal of soluble support materials on 3D printed parts. It provides demonstrated options to perform support removal on multiple materials such as ABS, ASA, PC, Nylon, PEEK, etc. In removing support for FDM/FFF and Mate- rial Jetting processes, such as Polyjet or Extrusion Technology, the sca product family provides a wide range of predefined machine settings and is fully compatible with all soluble support material concentrates, from water to caustics. It further provides the user with the appropriate level of agitation to balance the needs of heavy removal while maintaining critical dimensions on delicate or intricate part geometry.

• Overall Size: 36.5L x 22.8 W x 42.8 H in. (92.7 L x 57.9 W x 108.7 H cm)
• Capacity: 27 gallons (102 liters)
• Power Requirements: 230VAC +/- 10%, ~ 50/60 Hz - 15A - 3400W
• Stainless Steel Tank & Durable Pumping System compatible with water-soluble and caustic-soluble printed support materials
• Proven Support Removal from FFF/FDM parts including ABS, ASA, PC, Nylon, PEEK, and others
• Presets designed for 3D printed parts temperatures: 50°, 60°, 70° and 85° C
• “Heat Off” temp. selection for Material Jetting & Curing (MJ), such as Polyjet
• User-controlled Digital Timer
• Whisper-quiet Operation for in-office use or industrial setting
• Built-in Safety Features such as Over Temperature & Water Level Alarms
• CE/ cTUVus/ RoHS/ WEEE/ RCM Regulatory Approvals
